Fortinet NSE7_SDW-7.2 Real Exam Questions
The questions for NSE7_SDW-7.2 were last updated at Nov 30,2024.
- Exam Code: NSE7_SDW-7.2
- Exam Name: Fortinet NSE 7 - SD-WAN 7.2
- Certification Provider: Fortinet
- Latest update: Nov 30,2024
Refer to the exhibits.
Exhibit A shows the packet duplication rule configuration, the SD-WAN zone status output, and the sniffer output on FortiGate acting as the sender. Exhibit B shows the sniffer output on a FortiGate acting as the receiver.
The administrator configured packet duplication on both FortiGate devices. The sniffer output on the sender FortiGate shows that FortiGate forwards an ICMP echo request packet over three overlays, but it only receives one reply packet through T_INET_1_0.
Based on the output shown in the exhibits, which two reasons can cause the observed behavior? (Choose two.)
- A . On the receiver FortiGate, packet-de-duplication is enabled.
- B . The ICMP echo request packets sent over T_INET_0_0 and T_MPLS_0 were dropped along the way.
- C . The ICMP echo request packets received over T_INET_0_0 and T_MPLS_0 were offloaded to NPU.
- D . On the sender FortiGate, duplication-max-num is set to 3.
Which two interfaces are considered overlay links? (Choose two.)
- A . LAG
- B . IPsec
- C . Physical
- D . GRE
What three characteristics apply to provisioning templates available on FortiManager? (Choose three.)
- A . You can apply a system template and a CLI template to the same FortiGate device.
- B . A CLI template can be of type CLI script or Perl script.
- C . A template group can include a system template and an SD-WAN template.
- D . A template group can contain CLI templates of both types.
- E . Templates are applied in order, from top to bottom.
What are two benefits of choosing packet duplication over FEC for data loss correction on noisy links? (Choose two.)
- A . Packet duplication can leverage multiple IPsec overlays for sending additional data.
- B . Packet duplication does not require a route to the destination.
- C . Packet duplication supports hardware offloading.
- D . Packet duplication uses smaller parity packets which results in less bandwidth consumption.
Refer to the exhibits.
Exhibit A –
Exhibit B –
Exhibit A shows a site-to-site topology between two FortiGate devices: branch1_fgt and dc1_fgt.

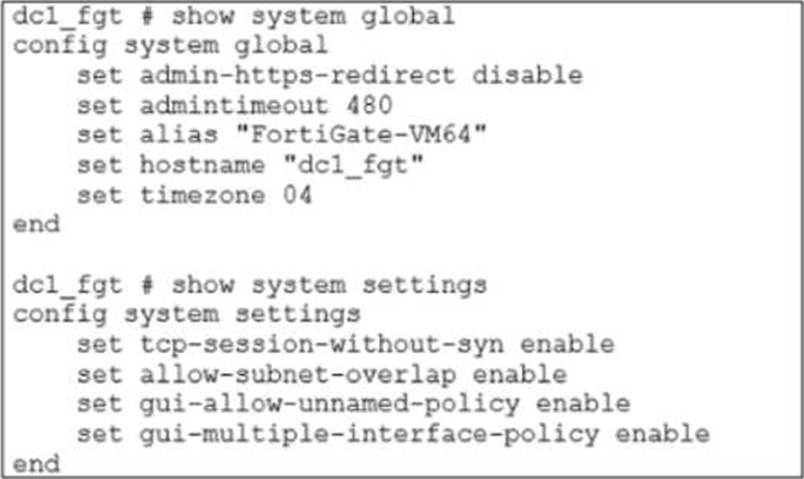

Exhibit B shows the system global and system settings configuration on dc1_fgt.
When branch1_client establishes a connection to dc1_host, the administrator observes that, on dc1_fgt, the reply traffic is routed over T_INET_0_0, even though T_INET_1_0 is the preferred member in the matching SD-WAN rule.
Based on the information shown in the exhibits, what configuration change must be made on dc1_fgt so dc1_fgt routes the reply traffic over T_INET_1_0?
- A . Enable auxiliary-session under config system settings.
- B . Disable tсp-session-without-syn under config system settings.
- C . Enable snat-route-change under config system global.
- D . Disable allow-subnet-overlap under config system settings.
Refer to the exhibit.
Two hub-and-spoke groups are connected through a site-to-site IPsec VPN between Hub 1 and Hub 2. The administrator configured ADVPN on both hub-and-spoke groups.
Which two outcomes are expected if a user in Toronto sends traffic to London? (Choose two.)
- A . London generates an IKE information message that contains the Toronto public IP address.
- B . Traffic from Toronto to London triggers the dynamic negotiation of a direct site-to-site VPN.
- C . Toronto needs to establish a site-to-site tunnel with Hub 2 to bypass Hub 1.
- D . The first packets from Toronto to London are routed through Hub 1 then to Hub 2.
Refer to the exhibit.
An administrator used the SD-WAN overlay template to prepare an IPsec configuration for a hub-and-spoke SD-WAN topology. The exhibit shows the installation preview for one FortiGate device.
In the exhibit, which statement best describes the configuration applied to the FortiGate device?
- A . It is a hub device. It can send ADVPN shortcut offers.
- B . It is a spoke device that establishes dynamic IPsec tunnels to the hub. The subnet range is 10.10.128.0/23.
- C . It is a spoke device that establishes dynamic IPsec tunnels to the hub. It can send ADVPN shortcut requests.
- D . It is a hub device and will automatically discover the spoke devices that are in the SD-WAN topology.
What are two common use cases for remote internet access (RIA)? (Choose two.)
- A . Provide direct internet access on spokes
- B . Provide internet access through the hub
- C . Centralize security inspection on the hub
- D . Provide thorough inspection on spokes
Exhibit.
The exhibit shows VPN event logs on FortiGate.
In the output shown in the exhibit, which statement is true?
- A . There are no IPsec tunnel statistics log messages for ADVPN cuts.
- B . There is one shortcut tunnel built from master tunnel T_MPLS_0.
- C . The VPN tunnel T_MPLS_0 is a shortcut tunnel.
- D . The master tunnel T_INET_0 cannot accept the ADVPN shortcut.
Refer to the exhibits.
An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the information shown in exhibit A.
After generating GoToMeeting test traffic, the administrator examined the respective traffic log on FortiAnalyzer, which is shown in exhibit
B. The administrator noticed that the traffic matched the implicit SD-WAN rule, but they expected the traffic to match rule ID 1.
Which two reasons explain why the traffic matched the implicit SD-WAN rule? (Choose two.)
- A . FortiGate did not refresh the routing information on the session after the application was detected.
- B . Port1 and port2 do not have a valid route to the destination.
- C . Full SSL inspection is not enabled on the matching firewall policy.
- D . The session 3-tuple did not match any of the existing entries in the ISDB application cache.
