Cisco 200-301 Real Exam Questions
The questions for 200-301 were last updated at Nov 18,2024.
- Exam Code: 200-301
- Exam Name: Implementing and Administering Cisco Solutions
- Certification Provider: Cisco
- Latest update: Nov 18,2024

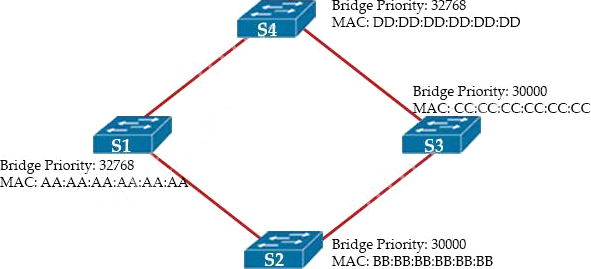

Refer to the exhibit.
Which switch becomes the root bridge?
- A . S1
- B . S2
- C . S3
- D . S4
Which command entered on a switch configured with Rapid PVST* listens and learns for a specific time period?
- A . switch(config)#spanning-tree vlan 1 max-age 6
- B . switch(config)#spanning-tree vlan 1 hello-time 10
- C . switch(config)#spanning-tree vlan 1 priority 4096
- D . switch(config)#spanning-tree vlan 1 forward-time 20
Which two encoding methods are supported by REST APIs? (Choose two)
- A . YAML
- B . JSON
- C . EBCDIC
- D . SGML
- E . XML
Which two encoding methods are supported by REST APIs? (Choose two)
- A . YAML
- B . JSON
- C . EBCDIC
- D . SGML
- E . XML
Which two minimum parameters must be configured on an active interface to enable OSPFv2 to operate? (Choose two)
- A . OSPF area
- B . OSPF MD5 authentication key
- C . iPv6 address
- D . OSPf process ID
- E . OSPf stub flag
Which two minimum parameters must be configured on an active interface to enable OSPFv2 to operate? (Choose two)
- A . OSPF area
- B . OSPF MD5 authentication key
- C . iPv6 address
- D . OSPf process ID
- E . OSPf stub flag
By default, how Does EIGRP determine the metric of a route for the routing table?
- A . it uses the bandwidth and delay values of the path to calculate the route metric
- B . it uses a default metric of 10 for all routes that are learned by the router
- C . it uses a reference Bandwidth and the actual bandwidth of the connected link to calculate the route metric
- D . it counts the number of hops between the receiving and destination routers and uses that value as the metric
Refer to Exhibit.
Router R1 Fa0/0 is unable to ping router R3 Fa0’1.
Which action must be taken in router R1 to help resolve the configuration issue?
- A . set the default network as 20.20.20.0/24
- B . set the default gateway as 20.20.20.2
- C . configure a static route with Fa0/1 as the egress interface to reach the 20.20.20.0/24 network
- D . configure a static route with 10.10.10.2 as the next hop to reach the 20.20.20.0/24 network
An email user has been lured into clicking a link in an email sent by their company’s security organization. The webpage that opens reports that it was safe but the link could have contained malicious code.
Which type of security program is in place?
- A . Physical access control
- B . Social engineering attack
- C . brute force attack
- D . user awareness
Refer to Exhibit.
All routers in the network are configured R2 must be the DR. After the engineer connected the devices, R1 was elected as the DR.
Which command sequence must be configure on R2 to Be elected as the DR in the network?
- A . Option A
- B . Option B
- C . Option C
- D . Option D
